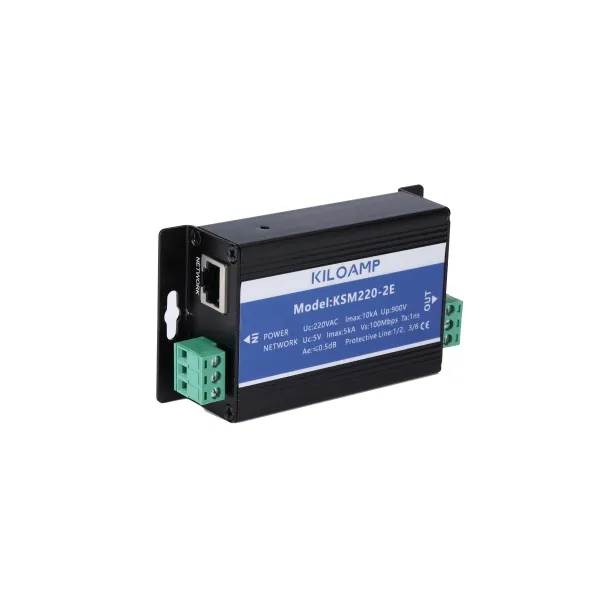

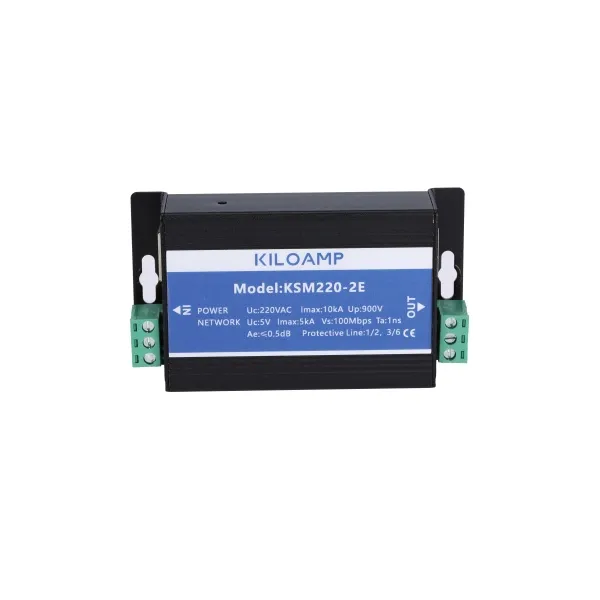

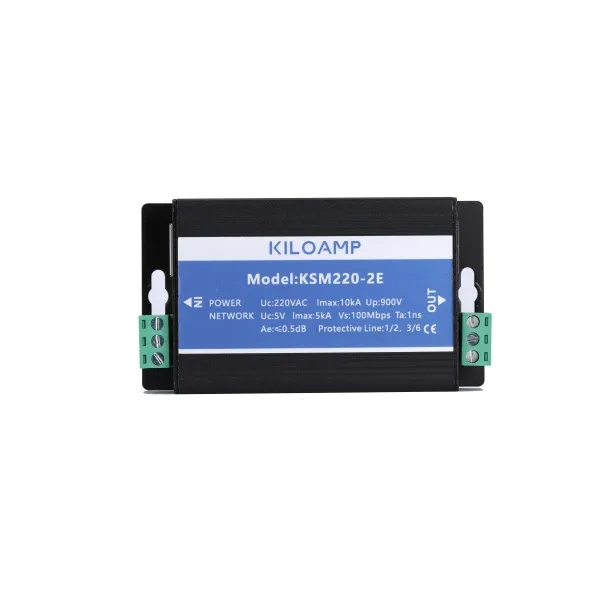

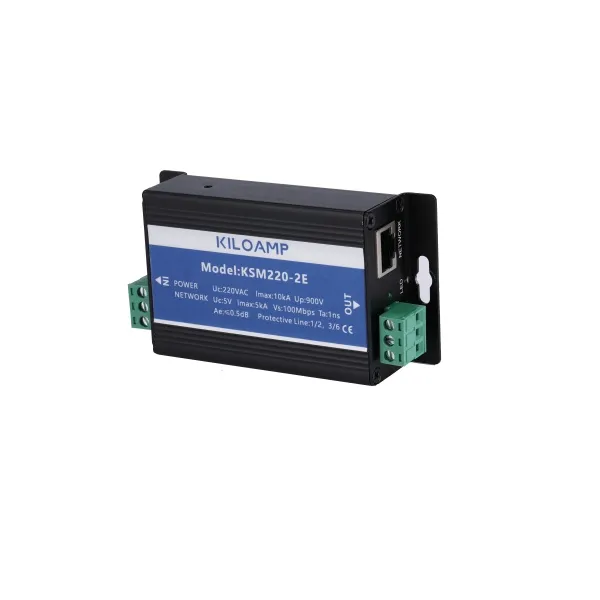

The KSM220-2E is mainly used for lightning protection in video surveillance systems, safeguarding the power and signal lines of network cameras from the impact of lightning electromagnetic pulses, induced overvoltages, and operational overvoltages. This network camera lightning arrester employs multi-level protection circuits and high-speed protection components to achieve rapid response, precise protection, extremely low residual voltage, and minimal insertion loss. It can effectively ensure the safe operation of the system and prevent damage to system equipment or communication disruptions caused by overvoltage and overcurrent.
Strong ability in voltage adapting
Power supply line and network line protection
Three level of protection
Aluminum enclosure
IP camera
- Installation must be carried out under power-off conditions. Mount the surge protector on the panel, connect it in series with the protected equipment (OUT terminal to the equipment), and ground the protector's grounding wire locally.
- Regularly check the working status of the surge protector. Replace the product immediately if it fails or is damaged.
| Electrical | |
Model | KSM220-2E |
Power line | |
Nominal Working Voltage[Un] | 220 V |
Max. Continuous Operating Voltage[Uc] | 320 V |
Nominal Discharge Current [In] | 3 kA |
Maximum Discharge Current [lmax] | 5 kA |
Voltage Protection Level [Up] | 800 V |
Response time[tA] | 1 ns |
Pins protected | L & N |
Connector | Screw terminal |
Network line | |
Max. Continuous Operating Voltage[Uc] | 5 V |
Transmission rate | 100 Mbps / 1000 Mbps |
Nominal Discharge Current [In] | 3 kA |
Maximum Discharge Current [lmax] | 5 kA |
Voltage Protection Level [Up] | 20 V |
Response time[tA] | 1 ns |
Insertion Loss | ≤ 0.5 dB |
Pins protected | 1 & 2, 3 & 6 |
Connector | RJ45 |
| Mechanical | |
Ports protected | 2 |
Connection Mode | Series |
Wiring diameter | 4-25 mm² |
Mounting Method | In line |
Environmental Ingress Protection Rating | IP20 |
Enclosure Color | Black |
Operating Temperature (℃) | -40 ℃ to +80 ℃ |
Dimensions (L×W×H) | 75 × 68 × 40 mm |
Weight | 120 g |
| Standards Compliance&Certifications | |
Standards | IEC 61643-21 EN 61643-21 |
| Certifications | CE |
