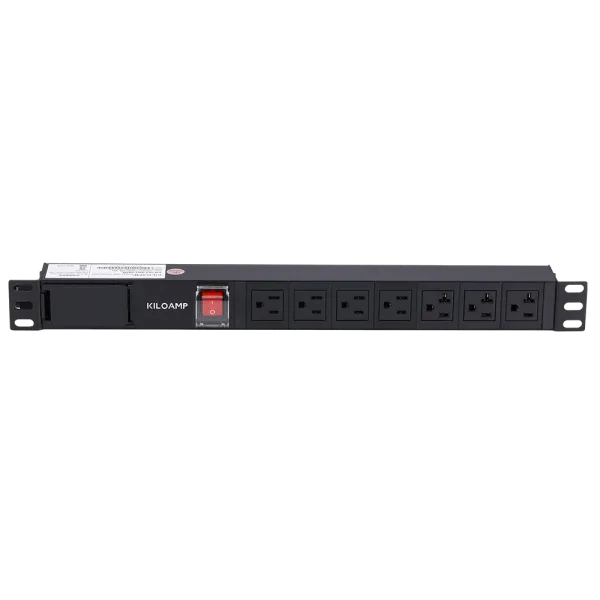

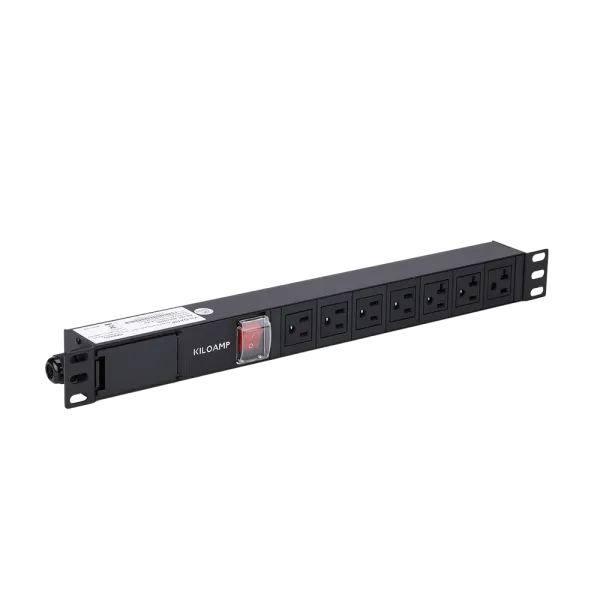

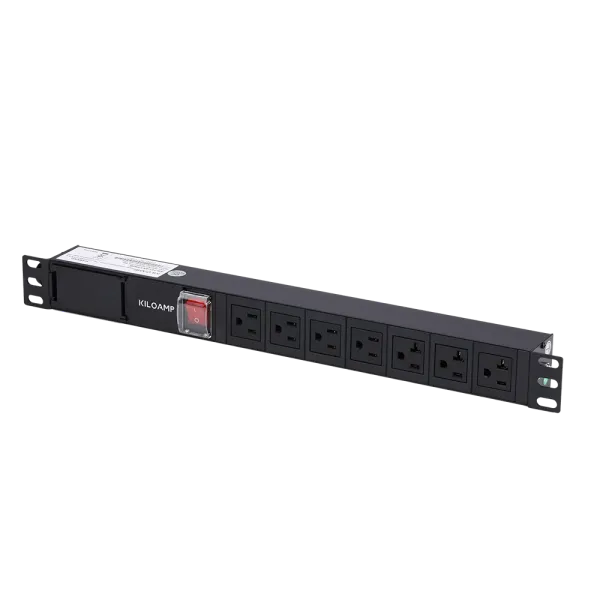

The Power Distribution Unit (PDU) is a critical component for efficiently distributing electrical power in equipment cabinets. It offers various inlet, outlet and functional module options to meet diverse industrial needs. The PDU includes common outlet types like IEC, US NEMA, UK BS 1363, German Schuko and French standards, supporting flexible socket combinations for different devices. This basic rack PDU has a 1U horizontal design, supports up to 16A input current at 240V and features 4 NAME5-15R & 3 NAME5-20R outlets, a 16A terminal box and a Power switch.It delivers reliableand efficient power distribution for your equipment.
High-quality aluminum alloy casing for durability
Compatible with both 19-inch racks and non-standard cabinets
Horizontal and vertical mounting options for flexible installation
Meets a wide range of global system sand standards
Supports a diverse selection of socket specifications
Includes a variety of functional modules to suit different needs
Provides extensive customization options for tailored configurations
Cost-effective and reliable rack-mounted power solutions
Data center
Computer room
Control room
Dispatch hub
Office environment
| Main | |
Product type | Basic |
Mounting type | Horizontal installation, 19″ |
Rack occupancy | 1U |
Working voltage | 100–250 VAC |
Working frequency | 50/60 Hz |
Maximum load power | 4.0 kW |
| Input | |
Input voltage | 100–250 VAC |
Input current | 16 A |
Input path number | 1 |
Input mode | ¨ Cord þ Terminal box ¨ C14 Socket ¨ C20 Socket |
Input cable specifications | None |
Plug standard | None |
| Output | |
Output voltage | 100–250 VAC |
Max. output current of a single socket | 10 A |
Number of sockets | 7 |
Socket standard | NAME5-15R (4) & NAME5-20R (3) |
| Function | |
Display function | Power Indicator |
Local control function | Power Switch |
Protect function | None |
Monitoring function | None |
Remote control function | None |
| Physical parameter | |
Shell material | Aluminum alloy |
Functional module material | ABS+PC |
Product color | Black |
IP Code | IP20 |
Dimensions | 482.6 (W) x 44.5 (H) x 44.5 (D) mm |
| Environmental | |
Ambient Air Temperature for Operation | -20...60 °C |
Relative Humidity | 5...95 % |
Operating Altitude | 0...3000 ft |
Ambient Air Temperature for Storage | -25...85 °C |
Storage Relative Humidity | 5...95 % |
Storage Altitude | 0...5000 ft |
| Contractual warranty | |
| Warranty | Warranty 1 year repair or replace |
Voltage[Uc] | Current | Space | Input | Output | function | Order Model |
100–250 VAC | 16 A | 1U | Power Cable | 6 x C13 | Switch | KB-16C-06E3B |
100–250 VAC | 16 A | 1U | Power Cable | 6 x C19 | Switch | KB-16C-06E1B |
100–250 VAC | 16 A | 1U | Power Cable | 8 x C13 | Indicator | KB-16C-08E3A |
100–250 VAC | 16 A | 1U | Power Cable | 8 x C19 | Indicator | KB-16C-08E1A |
100–250 VAC | 16 A | 0U | Terminal Box | 10 x NEMA5-15 | Fuse | KB-16T-10N1F |
100–250 VAC | 16 A | 0U | Terminal Box | 10 x NEMA5-20 | Circuit Breaker | KB-16T-10N2C |
100–250 VAC | 32 A | 0U | Terminal Box | 12 x UK | Surge Protection | KB-32T-12BD |
100–250 VAC | 32 A | 0U | Terminal Box | 12 x UK | MCB+Indicator | KB-32T-12BAC |
100–250 VAC | 32 A | 0U | C20 Socket | 16 x C13 | Ammeter | KB-32S1-16E3/8E1E |
100–250 VAC | 32A | 0U | C14 Socket | 16 x C13 | MCB+SPD | KB-32S2-16E3/8E1CD |
