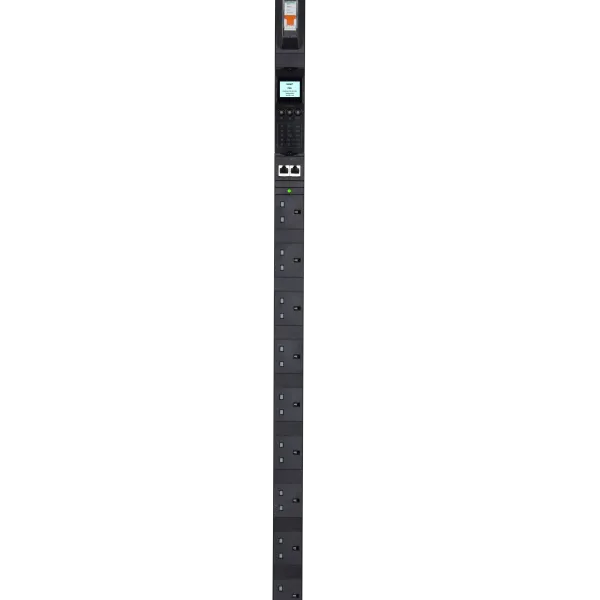

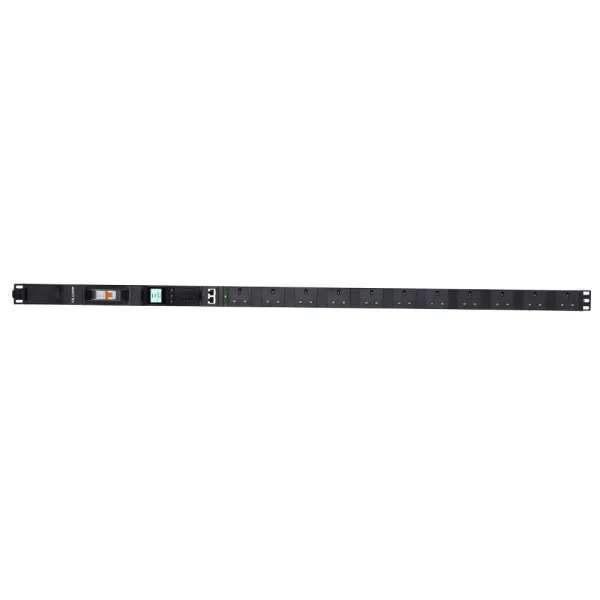

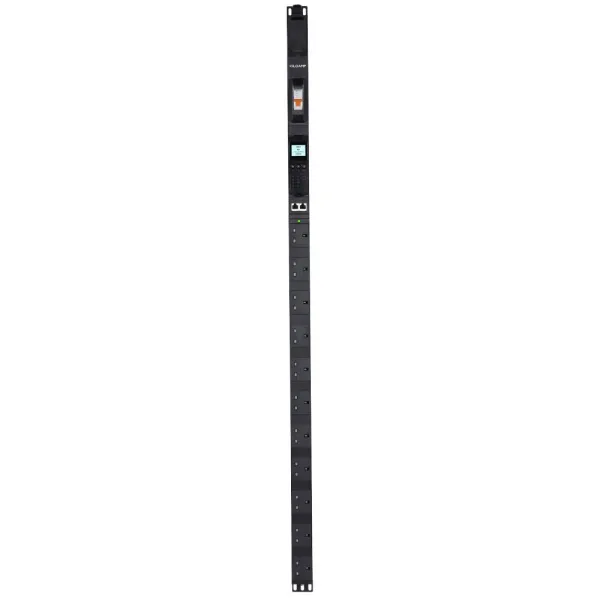

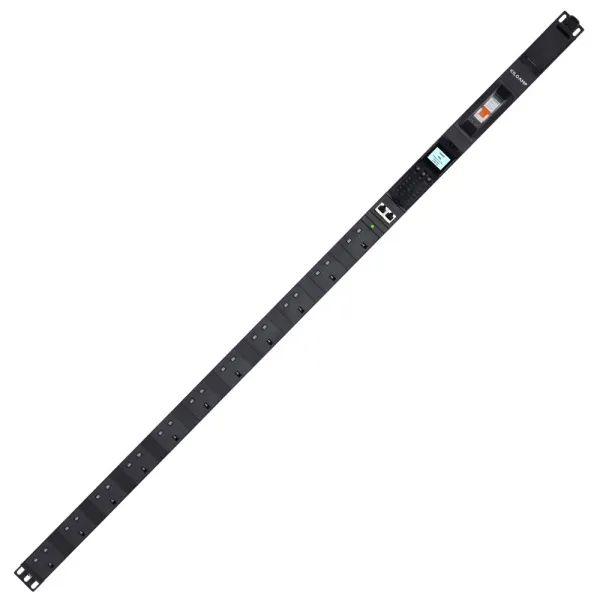

PDU (Power Distribution Unit) is a critical component in equipment cabinets, engineered to deliver efficient and reliable power distribution. It offers versatile input, output, and modular configurations to accommodate diverse industrial requirements, supporting global socket standards including IEC, US NEMA, UK BS 1363, German Schuko, and French specifications. Featuring a 0U vertical design, this PDU accepts single-phase power input up to 32A/240V with a maximum power capacity of 8kW. Its robust configuration integrates 11 BS1363 outlets, a 32A terminal block, a power status indicator, and a 32A miniature circuit breaker for overload and short-circuit protection. Most notably, the inclusion of a built-in local smart meter enables real-time monitoring of critical electrical parameters such as current, voltage, and energy consumption, empowering users to proactively manage power usage and optimize operational efficiency across all connected devices within the cabinet.
Overload & Short-circuit Protection
Monitoring of local electrical parameters such as current, voltage and power
High-power Capacity & Multi-device Power Supply Needs for Cabinets
High-quality aluminum alloy casing for durability
Compatible with both 19-inch racks and non-standard cabinets
Horizontal and vertical mounting options for flexible installation
Meets a wide range of global system sand standards
Supports a diverse selection of socket specifications
Includes a variety of functional modules to suit different needs
Provides extensive customization options for tailored configurations
Cost-effective and reliable rack-mounted power solutions
Data center
Computer room
Control room
Dispatch hub
Office environment
| Main | |
Product type | Basic |
Mounting type | Vertical installation |
Rack occupancy | 0U |
Working voltage | 100–250 VAC |
Working frequency | 50/60 Hz |
Maximum load power | 8.0 kW |
| Input | |
Input voltage | 100–250 VAC |
Input current | 32 A |
Input path number | 1 |
Input mode | ¨ Cord þ Terminal box ¨ C14 Socket ¨ C20 Socket |
Input cable specifications | None |
Plug standard | None |
| Output | |
Output voltage | 100–250 VAC |
Max. output current of a single socket | 13 A |
Number of sockets | 11 |
Socket standard | UK/BS 1363/Type G |
| Function | |
Display function | Power Indicator |
Local control function | 32A Miniature Circuit Breaker |
Protect function | None |
Monitoring function | Digital Ammeter |
Remote control function | None |
| Physical parameter | |
Shell material | Aluminum alloy |
Functional module material | ABS+PC |
Product color | Black |
IP Code | IP20 |
Dimensions | 1250 (W) x 44.5 (H) x 44.5 (D) mm |
| Environmental | |
Ambient Air Temperature for Operation | -20...60 °C |
Relative Humidity | 5...95 % |
Operating Altitude | 0...3000 ft |
Ambient Air Temperature for Storage | -25...85 °C |
Storage Relative Humidity | 5...95 % |
Storage Altitude | 0...5000 ft |
| Contractual warranty | |
| Warranty | Warranty 1 year repair or replace |
Voltage[Uc] | Current | Space | Input | Output | function | Order Model |
100–250 VAC | 16 A | 1U | Power Cable | 6 x C13 | Switch | KB-16C-06E3B |
100–250 VAC | 16 A | 1U | Power Cable | 6 x C19 | Switch | KB-16C-06E1B |
100–250 VAC | 16 A | 1U | Power Cable | 8 x C13 | Indicator | KB-16C-08E3A |
100–250 VAC | 16 A | 1U | Power Cable | 8 x C19 | Indicator | KB-16C-08E1A |
100–250 VAC | 16 A | 0U | Terminal Box | 10 x NEMA5-15 | Fuse | KB-16T-10N1F |
100–250 VAC | 16 A | 0U | Terminal Box | 10 x NEMA5-20 | Circuit Breaker | KB-16T-10N2C |
100–250 VAC | 32 A | 0U | Terminal Box | 12 x UK | Surge Protection | KB-32T-12BD |
100–250 VAC | 32 A | 0U | Terminal Box | 12 x UK | MCB+Indicator | KB-32T-12BAC |
100–250 VAC | 32 A | 0U | C20 Socket | 16 x C13 | Ammeter | KB-32S1-16E3/8E1E |
100–250 VAC | 32 A | 0U | C14 Socket | 16 x C13 | MCB+SPD | KB-32S2-16E3/8E1CD |
