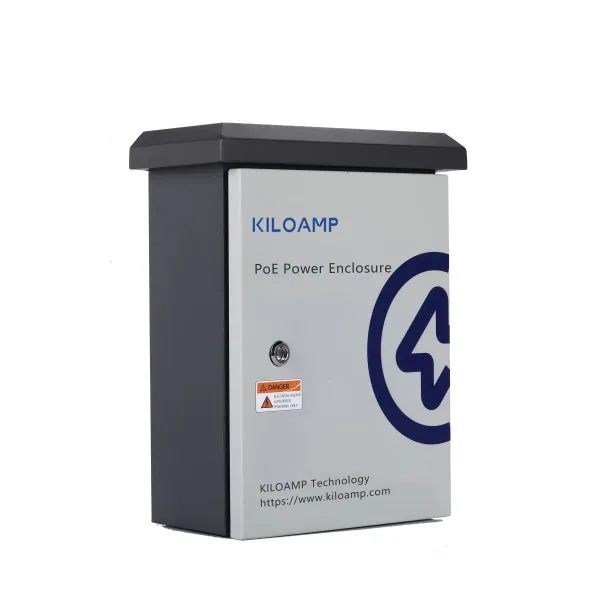

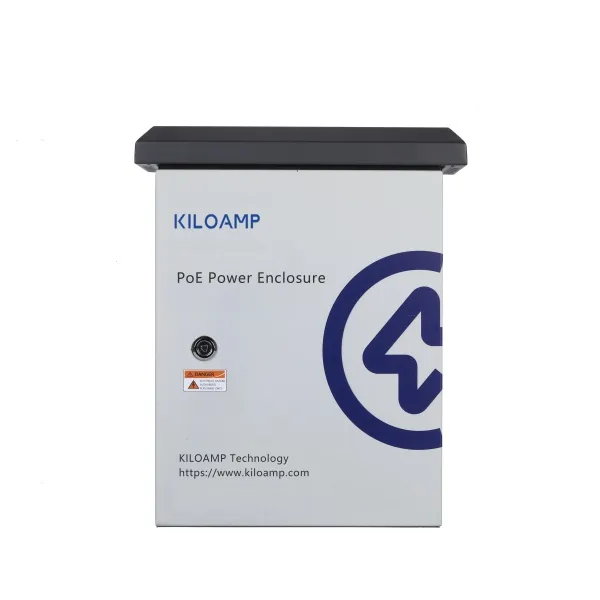

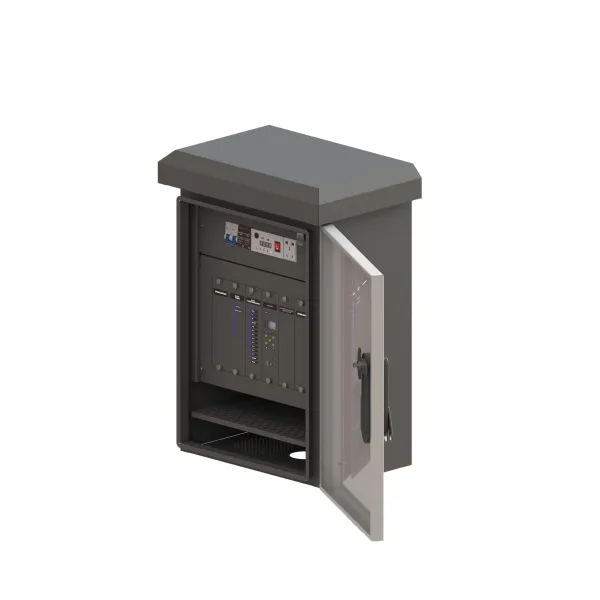

Introducing the innovative PoE (Power over Ethernet) Power Supply Enclosure, designed to meet the growing demands of modern network installations by providing efficient and reliable power distribution for PoE-enabled devices. This enclosure is an ideal solution for integrating power and data delivery into a single unified system, simplifying installation processes and enhancing operational efficiency.
The PoE Power Supply Enclosure is perfect for applications such as smart cities, surveillance systems, wireless access points, digital signage, and more. By streamlining the process of powering and connecting network devices, this enclosure not only reduces setup times but also ensures reliable and secure operation. It's an essential component for building robust, scalable, and future-ready network infrastructures.
Power & Data in One: Delivers power and data over a single Ethernet cable, simplifying wiring and reducing costs.
Energy Efficient: High-efficiency design minimizes power loss and ensures reliable performance.
Supports All PoE Devices: Compatible with PoE, PoE+, and PoE++ standards (IEEE 802.3af/at/bt), ideal for IP cameras, access points, and network switches.
Built-in Protection: Features surge and short-circuit protection to keep connected devices safe.
Monitors Environment: Tracks internal temperature and humidity for stable operation in any condition.
Remote Control: Manage and monitor the system anytime, anywhere via web browser or mobile app.
City Traffic Monitoring
Community video surveillance
Security infrastructure
| Main | |
Main Input Voltage | 120/240 VAC |
Maximum Input Current | 10 A |
Maximum Power of a Single Port | 25.5W |
Surge Protection | T2, 40kA(8/20 μs) |
Output Working Voltage | 12/24/48VDC |
Executive Standard | IEEE802.3af/at/bt |
| Communications | |
Type | Enterprise Switch |
Transmission Rate | 10/100/1000 Mbps |
Communication Mode | Full-Duplex & Half-Duplex |
Switch Capacity | 12 Gbit/s |
Function | LACP, POE, QoS, SNMP, Stackable, VLAN Support |
Ports | 4x1000 Mbps Ethernet port 2x1000 Mbps Optic Fiber Port(SFP) |
| Physical parameter | |
Material | Cold-Rolled Steel Plate |
Thickness | 1.2 mm(Cabinet Body)+1.5(Cabinet Door) |
Color | White |
Style | Outdoor |
Protection Rating | IP55 |
Dimensions | 480(H) x 380(W) x 180(D) mm |
| Environmental | |
Ambient Air Temperature for Operation | -20...60°C |
Relative Humidity | 5...95 % |
Operating Altitude | 0...3000 ft |
Ambient Air Temperature for Storage | -25...85 °C |
Storage Relative Humidity | 5...95 % |
Storage Altitude | 0...5000 ft |
| Contractual warranty | |
Warranty | Warranty 1 year repair or replace |
