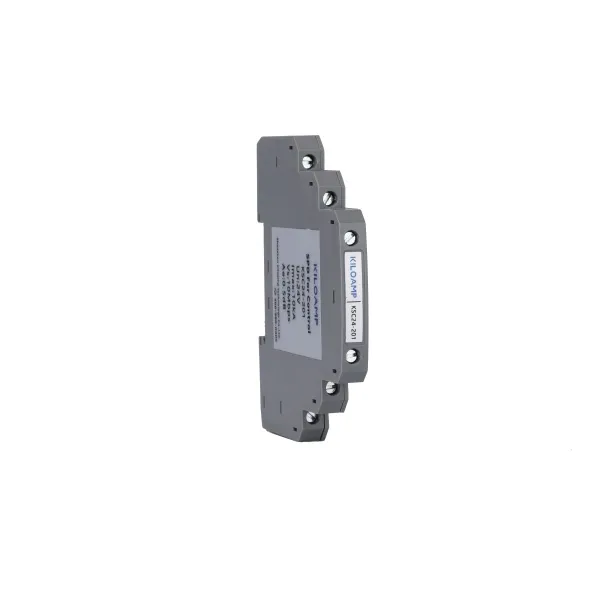

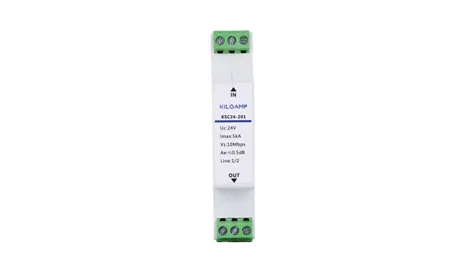

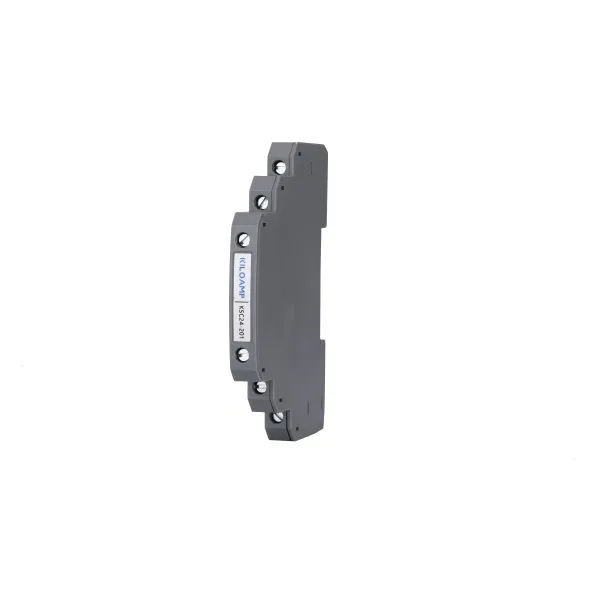

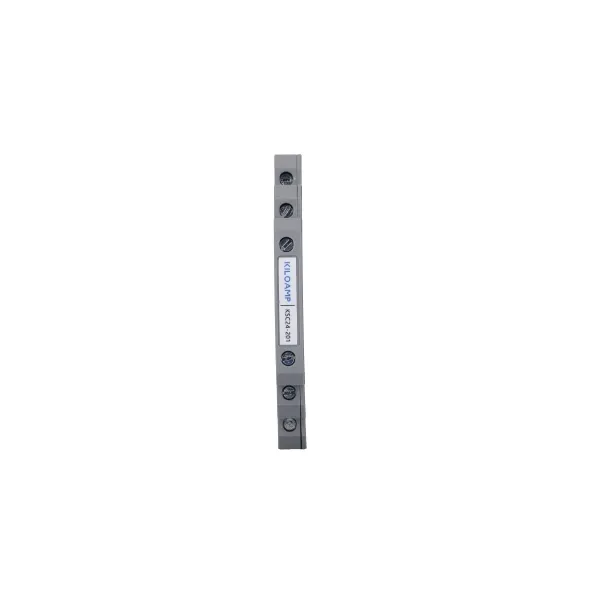

The KSC24-201/KSC24-401 is mainly used in industrial automation systems to protect the signal lines of PLC and other equipment from the influence of lightning electromagnetic pulses, induced overvoltages, and operational overvoltages. This PLC signal lightning arrester adopts an independent module design, multi-level protection circuits, and high-speed protection components, achieving characteristics such as rapid response, fine protection, extremely low residual voltage, and low transmission loss. It can effectively ensure the safe operation of the system and prevent overvoltage and overcurrent from causing damage to system equipment or communication interruption.
Protects PLC inputs/outputs from voltage surges and spikes
Guards analog (4–20 mA, 0–10 V) and digital signals
Fast response to surges
Low signal loss
Easy to install on DIN rail
Design for industrial environments
Industrial automation
Environmental monitoring
Power, water, and manufacturing plants
- Installation must be carried out under power-off conditions. Mount the surge protector on the panel, connect it in series with the protected equipment (OUT terminal to the equipment), and ground the protector's grounding wire locally.
- Regularly check the working status of the surge protector. Replace the product immediately if it fails or is damaged.
| Electrical | |
Model | KSC24-201/KSC24-401 |
Max. Continuous Operating Voltage[Uc] | 24 V |
Transmission rate | 10 Mbps |
Nominal Discharge Current [In] | 3 kA |
Maximum Discharge Current [lmax] | 5 kA |
Voltage Protection Level [Up] | 96 V |
Response time[tA] | 1 ns |
Insertion Loss | ≤ 0.5 dB |
Pins protected | 1 & 2 / 1 & 2, 3 & 4 |
Connector | Screw terminal |
| Mechanical | |
Ports protected | 1 |
Connection Mode | Series |
Wiring diameter | 0.75-2.5 mm² |
Mounting Method | In line |
Environmental Ingress Protection Rating | IP20 |
Enclosure Color | Black |
Operating Temperature (℃) | -40 ℃ to +80 ℃ |
Dimensions (L×W×H) | 90 × 18 × 25 mm |
Weight | 20 g |
| Standards Compliance&Certifications | |
Standards | IEC 61643-21 EN 61643-21 |
| Certifications | CE |
