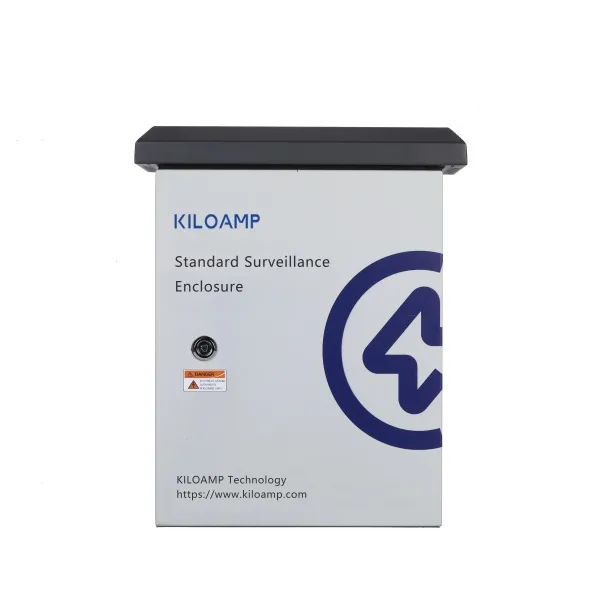

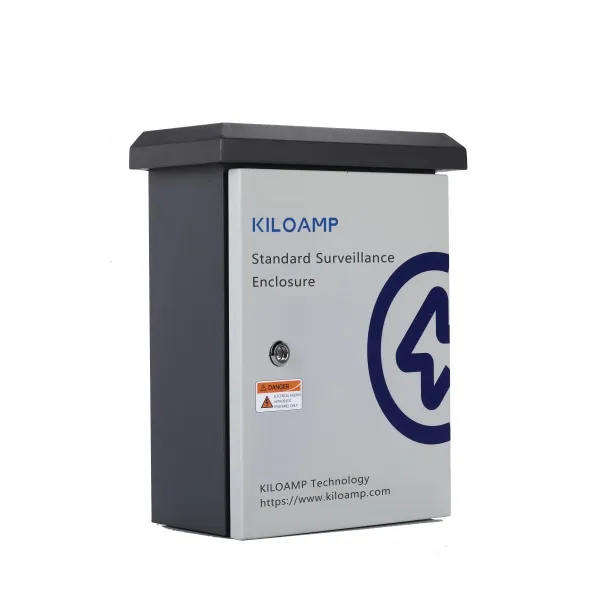

Our standardized All-in-One Video Surveillance Enclosure engineered to eliminate chronic industry pain points—complex cabling, disorganized enclosures, and high installation costs ,delivers power, communication, and environmental protection in a unified solution. It supports multi-voltage (12V/24V/48V/POE) power for IP cameras, fiber transceivers, industrial switches, and wireless APs, featuring triple-layered surge protection, over-current/over-voltage safeguards, and leakage detection. Its centralized grounding system rapidly discharges lightning strikes, reducing electrical hazards by 90%.
Built for extreme conditions, this IP55-rated enclosure operates reliably from -40℃ to +50℃ and withstands torrential rain, dust storms, and salt spray corrosion. Factory-preassembled components cut deployment costs by 30%, while tool-free modular cabling accelerates installation by 50%. For maintenance, hot-swappable modules enable 70% faster troubleshooting and part replacement—streamlining OPEX across the lifecycle.
Unified Power & Data Hub
Multi-voltage output: 220VAC/24VAC/12VDC/5VDC/POE+
Simultaneous supply for Cameras, Switches & ONUs
Advanced Circuit Protection
Over-current/over-voltage safeguards
40kA surge protection (power) + 5kA Ethernet SPD
Visual Health Monitoring
LED indicators: Power/Network/Fault status
Modular Scalability
Expandable with auto-reclosers, thermal controls, etc.
Extreme Environment Ready
-40°C to +50°C operation | IP55 rated
City Traffic Monitoring
Community video surveillance
Security infrastructure
| Main | |
Working Voltage | 100–250 VAC |
Working Frequency | 50/60 Hz |

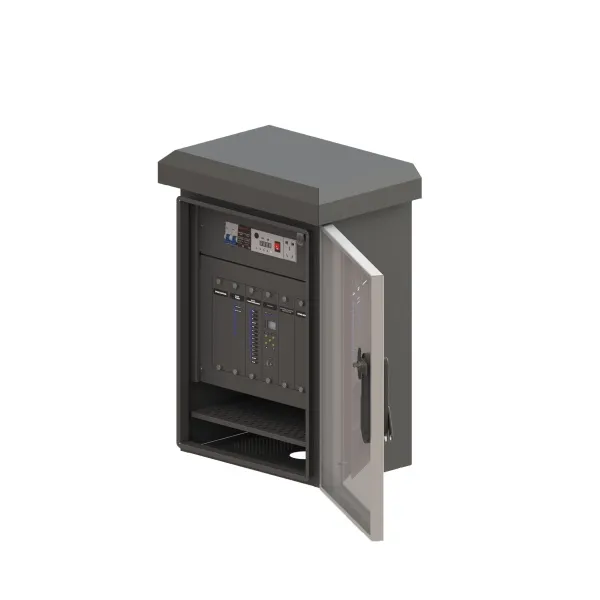

Function Module | MCB, SPD, 12VDC Power module, Industrial switch |
| Power | |
Input Voltage | 100–250 VAC |
Maximum Input Current | 10 A |
Output Voltage | 12 V DC |
Number of Output Channels | 8 Ports |
Maximum Current Output for Each Channel | 3 A |
Surge Protection Function | 40 kA (8/20 μs)） |
| Communication | |
Ethernet Port | 8 x 10/100/1000 Base-T RJ45 ports (Data) |
Optical Fiber Port | 2 x 100/1000 Base-X uplink SFP ports (Data) |
Network Protocol | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet |
Switching Capacity | 20 Gbps (non-blocking) |
Buffer Memory | 2 M |
LED Indicator | Power: PWR (Green), Network: Link (Yellow), Fiber port: L/A (Green) |
| Function | |
Overcurrent Protection | þ |
Power Surge Protection | þ 40 kA |
Ethernet Surge Protection | þ 5 kA |
Fan | þ |
| Physical parameter | |
Shell Material | Sheet metal |
Product Color | White |

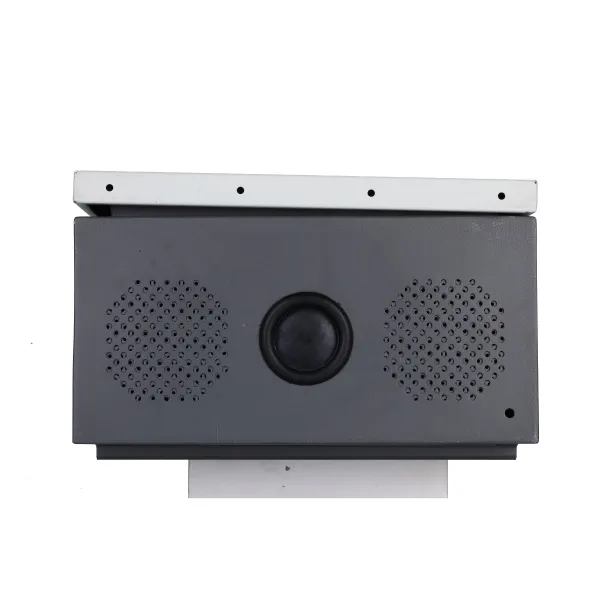

Incoming Line Method | Downline |

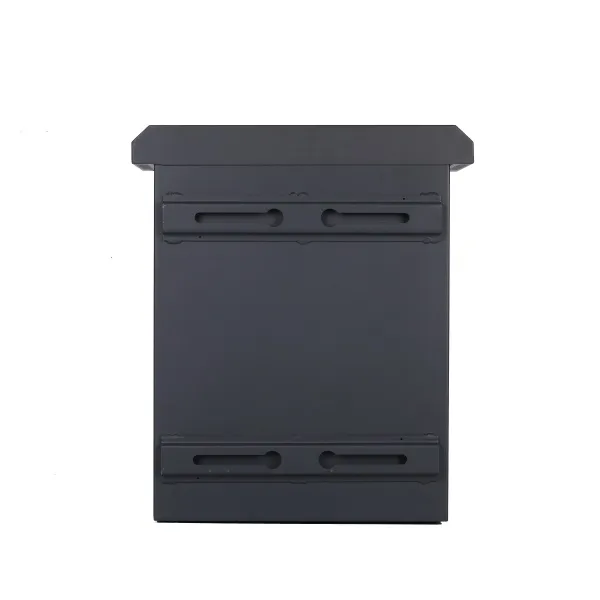

Way to Install | Wall-mounted & Pole-mounted installation |
IP Code | IP55 |
Dimensions | 500 x 400 x 200 mm |
| Environmental | |
Ambient Air Temperature for Operation | -20…60 °C |
Relative Humidity | 5…95 % |
Operating Altitude | 0…3000 ft |
Ambient air Temperature for Storage | -25…85 °C |
Storage Relative Humidity | 5…95 % |
Storage Altitude | 0…5000 ft |
| Contractual warranty | |
Warranty | Warranty 1 year repair or replace |
