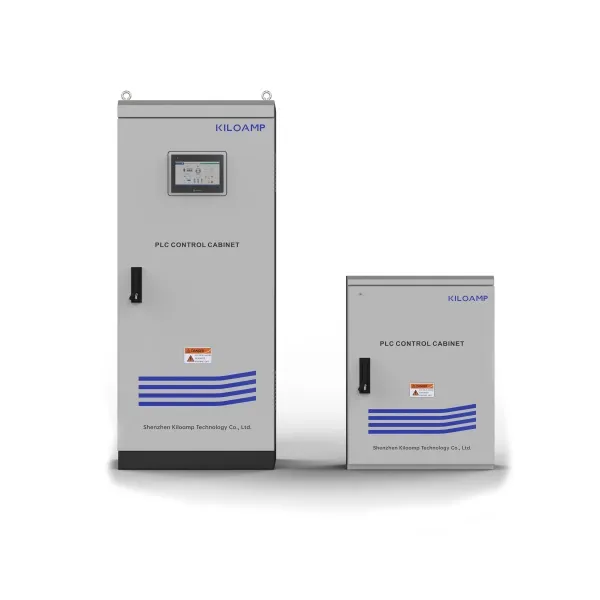

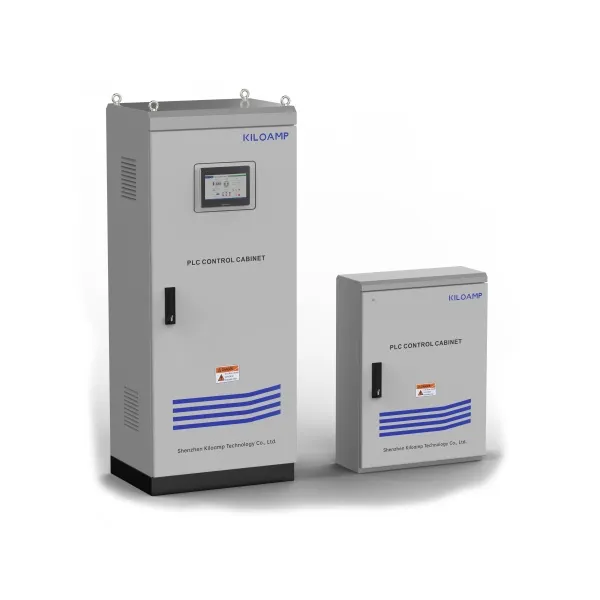

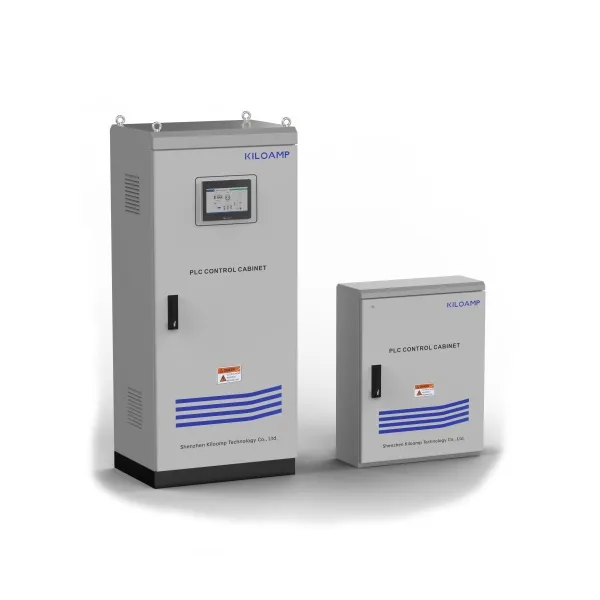

KILOAMP customized control cabinets are cabinet customization and integration solutions specifically designed for industrial automation control scenarios. They are compatible with the PLC brands provided by customers and can be customized in terms of cabinet structure, electrical circuits, and functional modules (such as power modules, signal conditioning modules, human-machine interaction modules, etc.) based on the industry requirements, equipment specifications, and control logic of customers. Achieve precise control, status monitoring and fault early warning of target equipment/production lines. The control cabinet integrates the power supply system, signal transmission system, safety protection system and operation and maintenance monitoring system. It supports seamless connection with the PLCS provided by customers (such as Siemens S7 series, Schneider M340 series, Rockwell ControlLogix series and other mainstream brands), ensuring efficient transmission of control instructions and stable and reliable operation of the equipment It is widely adapted to the demands of automation upgrades and intelligent transformation in various industries.
Personalized customization can be carried out based on the PLC model, control points, signal type (digital/analog) provided by the customer and the on-site installation environment. The cabinet size, internal layout and interface configuration can be customized to ensure perfect compatibility of the PLC with other modules (such as relays, contactors, sensors) and avoid redundant design.
Multi-layer safety protection is equipped with overcurrent protection, overvoltage protection, short-circuit protection and leakage protection devices. Meanwhile, the cabinet body is designed with IP54/IP55 protection grade (IP65 high protection is optional), effectively isolating dust, moisture and external impact. Surge protectors (SPDS) and signal isolators are installed in critical circuits to adapt to the complex power grid environment in industrial sites and reduce the risk of equipment damage.
Convenient installation and debugging: The cabinet adopts a modular design, with internal wiring zoning (strong current/weak current separation) and clear markings. Reserve PLC installation rails, terminal blocks and heat dissipation channels to facilitate on-site installation of the PLC by customers and subsequent maintenance. Provide standardized debugging interfaces to support rapid integration with the customer's upper computer system, thereby shortening the project cycle.
The intelligent operation and maintenance management integrated status monitoring module can collect PLC operation data (such as CPU load, input and output signal status), cabinet environmental parameters (temperature, humidity) and power supply parameters (voltage, current) in real time. The data can be uploaded to the customer monitoring platform through RS485/Ethernet interface. Support remote fault diagnosis and parameter debugging to reduce on-site operation and maintenance costs.
Smart Manufacturing, Water Treatment, New Energy, Cold Chain Logistics, Municipal Engineering.
Parameter Category | Technical Index |
Basic Cabinet Parameters | 1. Material: Cold-rolled steel plate (Q235) / 304 stainless steel 2. Thickness: Cabinet 1.2-1.5mm, Base 2.0mm 3. Protection Level: IP54 (Standard) / IP55/IP65 (Optional) 4. Corrosion Resistance Level: C4 (Standard) / C5 (Optional) 5. Color: RAL7035 (Light Gray) / Customer Customization 6. Size: W600-1200mm×D400-800mm×H800-1800mm (Customized) 7. Installation Method: Floor-mounted/Wall-mounted (Optional) |
Electrical System Parameters | 1. Operating Voltage: AC 100-240V/ AC220-380V (Optional) 2. Operating Frequency: 50/60Hz 3. Maximum Load Current: 16A-63A (Customized according to PLC and equipment needs) 4. Power Module: DC 24V/10A (Standard), expandable to DC 24V/20A 5. Surge Protection: Class T2, 40kA (8/20μs) (Power terminal); 10kA (Signal terminal) |
Control Interface Parameters | 1. PLC Adaptation: Supports mainstream PLC brands such as Siemens, Schneider, Rockwell, Mitsubishi 2. Communication Interface: RS485 (Modbus RTU), Ethernet (Modbus TCP/Profinet, Optional) 3. Input Interface: 8-64 digital inputs (DC 24V), 4-16 analog inputs (4-20mA/0-10V) 4. Output Interface: 8-64 digital outputs (relay/transistor), 4-8 analog outputs (4-20mA) 5. HMI: Optional 7-11 inch touch screen (supports WinCC/Intouch configuration) |
Environmental Adaptability Parameters | 1. Operating Temperature: -20℃~60℃ (Normal temperature); -40℃~70℃ (Low temperature optional) 2. Relative Humidity: 5%~95% (No condensation) 3. Altitude: ≤2000m (Standard); ≤4000m (Plateau optional) 4. Heat Dissipation Method: Natural heat dissipation + axial fan (Standard); Industrial air conditioner (Optional for high-temperature environment) |
Safety Certification | Complies with GB/T 3797-2016 "Electrical Control Equipment" and IEC 61439-1 "Low-Voltage Switchgear and Controlgear Assemblies", with CE certification (Optional for export) |
The core control unit (PLC) of this product is provided by the customer. We will confirm the PLC model, interface specifications, and control requirements with the customer before the project starts to ensure the customized solution matches accurately.
