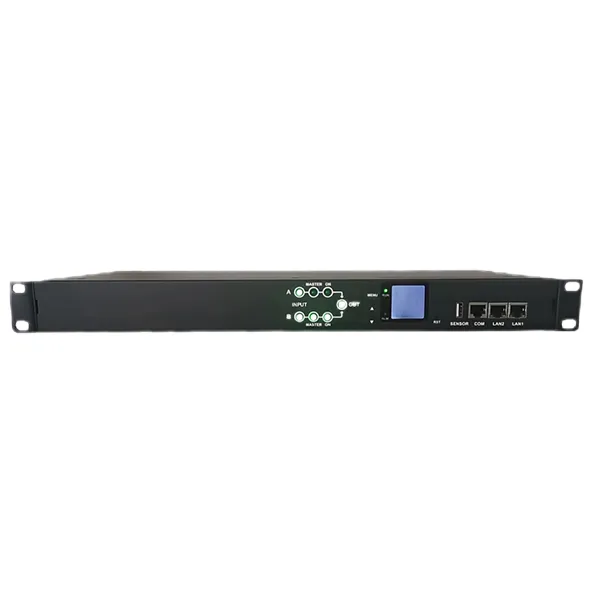

An Automatic Transfer Switch (ATS) is a critical device used in electrical power systems to ensure continuous power supply by automatically transferring the load between primary and backup power sources. It offers various inlet, outlet and functional module options to meet diverse industrial needs. The ATS includes common outlet types like IEC, US NEMA, UK BS 1363, German Schuko and French standards, supporting flexible socket combinations for different devices. This ATS has a 1U Horizontal design, supports up to 32A input current at 240V and features 8 AS/NZS 3112 outlets and a LCD. If a failure or abnormality is detected (such as voltage drops, surges, or complete outages), the ATS automatically switches the load to the secondary power source (e.g., generator or UPS) within milliseconds to prevent downtime.
High quality aluminum alloy shell
Complete the power switching swiftly and safely
Suited for both 19″ and non-standard cabinets
Comply with various global systems and standards
A diverse array of socket standards is available
A variety of functional modules are available
Offers a wide range of custom configurations
Data center
Computer room
Control room
Dispatch hub
Office environment
| Main | |
Product type | ATS |
Mounting type | Horizontal installation |
Rack occupancy | 1U |
Working voltage | 100–250 VAC |
Working frequency | 50/60 Hz |
Maximum load power | 8.0 kW |
| Input | |
Input voltage | 100–250 VAC |
Input current | 32 A |
Input path number | 1 |
Input mode | ■Cord ¨Terminal box ¨Socket (¨ C20/¨ C14) |
Input cable specifications | 3 x 2.5 mm² x 3 meter |
Plug standard | Australian standard |
| Output | |
Output voltage | 100–250 VAC |
Max. output current of a single socket | 10 A |
Number of sockets | 8 |
Socket standard | 8 AS/NZS 3112 |
| Function | |
Display function | LCD |
Local control function | None |
Protect function | None |
Monitoring function | None |
Remote control function | None |
| Physical parameter | |
Shell material | Sheet metal |
Functional module material | ABS+PC |
Product color | Black |
IP Code | IP20 |
Dimensions | 482.6 (W) x 44.5 (H) x 44.5 (D) mm |
| Environmental | |
Ambient Air Temperature for Operation | -20...60 °C |
Relative Humidity | 5...95 % |
Operating Altitude | 0...3000 ft |
Ambient Air Temperature for Storage | -25...85 °C |
Storage Relative Humidity | 5...95 % |
Storage Altitude | 0...5000 ft |
| Contractual warranty | |
| Warranty | Warranty 1 year repair or replace |
