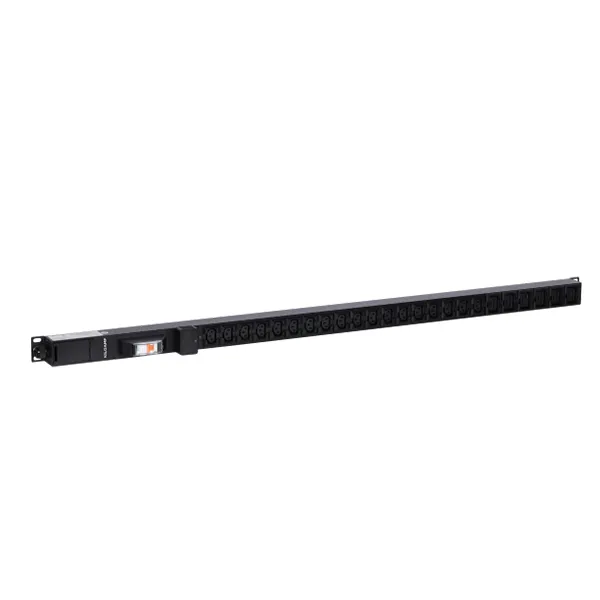

PDU (Power Distribution Unit) is a critical component in equipment cabinets, designed to deliver efficient and reliable power distribution. It provides versatile input, output, and modular configurations to meet diverse industrial demands, supporting global socket standards such as IEC, US NEMA, UK BS 1363, German Schuko, and French specifications. This 0U vertically mounted PDU accepts single-phase power input up to 32A/240V, with a maximum power capacity of 8kW. It integrates 18 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, along with a 32A terminal block, a power status indicator, and a 32A miniature circuit breaker for overload and short-circuit protection. The inclusion of a 10kA surge protection module stands out as a key feature, capable of suppressing surges up to 6kV by rapidly diverting transient energy to the ground while limiting residual voltage below 1kV. This robust design ensures minimal risk of equipment damage or operational downtime caused by lightning strikes or voltage spikes, thereby safeguarding connected devices and maintaining uninterrupted power supply for mission-critical applications.
Overload & Short-circuit Protection
Overvoltage, Surge & Lightning Strike Protection
High-power Capacity & Multi-device Power Supply Needs for Cabinets
High-quality aluminum alloy casing for durability
Compatible with both 19-inch racks and non-standard cabinets
Horizontal and vertical mounting options for flexible installation
Meets a wide range of global system sand standards
Supports a diverse selection of socket specifications
Includes a variety of functional modules to suit different needs
Provides extensive customization options for tailored configurations
Cost-effective and reliable rack-mounted power solutions
Data center
Computer room
Control room
Dispatch hub
Office environment
| Main | |
Product type | Basic |
Mounting type | Vertical installation |
Rack occupancy | 0U |
Working voltage | 100–250 VAC |
Working frequency | 50/60 Hz |
Maximum load power | 8.0 kW |
| Input | |
Input voltage | 100–250 VAC |
Input current | 32 A |
Input path number | 1 |
Input mode | ¨ Cord þ Terminal box ¨ C14 Socket ¨ C20 Socket |
Input cable specifications | None |
Plug standard | None |
| Output | |
Output voltage | 100–250 VAC |
Max. output current of a single socket | 10A (C13) &16A (C19) |
Number of sockets | 24 |
Socket standard | IEC 60320 C13 (18) & IEC 60320 C19 (6) |
| Function | |
Display function | Power indicator |
Local control function | 32A Miniature Circuit Breaker |
Protect function | 10kA Replaceable Surge & Lightning Protection Module |
Monitoring function | None |
Remote control function | None |
| Physical parameter | |
Shell material | Aluminum alloy |
Functional module material | ABS+PC |
Product color | Black |
IP Code | IP20 |
Dimensions | 1228mm(W) x44.5mm(H)x 44.55mm(D) |
| Environmental | |
Ambient Air Temperature for Operation | -20...60 °C |
Relative Humidity | 5...95 % |
Operating Altitude | 0...3000 ft |
Ambient Air Temperature for Storage | -25...85 °C |
Storage Relative Humidity | 5...95 % |
Storage Altitude | 0...5000 ft |
| Contractual warranty | |
| Warranty | Warranty 1 year repair or replace |
Voltage[Uc] | Current | Space | Input | Output | function | Order Model |
100–250 VAC | 16 A | 1U | Power Cable | 6 x C13 | Switch | KB-16C-06E3B |
100–250 VAC | 16 A | 1U | Power Cable | 6 x C19 | Switch | KB-16C-06E1B |
100–250 VAC | 16 A | 1U | Power Cable | 8 x C13 | Indicator | KB-16C-08E3A |
100–250 VAC | 16 A | 1U | Power Cable | 8x C19 | Indicator | KB-16C-08E1A |
100–250 VAC | 16 A | 0U | Terminal Box | 10 x NEMA5-15 | Fuse | KB-16T-10N1F |
100–250 VAC | 16 A | 0U | Terminal Box | 10 x NEMA5-20 | Circuit Breaker | KB-16T-10N2C |
100–250 VAC | 32 A | 0U | Terminal Box | 12 x UK | Surge Protection | KB-32T-12BD |
100–250 VAC | 32 A | 0U | Terminal Box | 12 x UK | MCB+Indicator | KB-32T-12BAC |
100–250 VAC | 32 A | 0U | C20 Socket | 16 x C13 | Ammeter | KB-32S1-16E3/8E1E |
100–250 VAC | 32 A | 0U | C14 Socket | 16 x C13 | MCB+SPD | KB-32S2-16E3/8E1CD |
