Smart Surveillance CCTV Enclosures & Cabinets

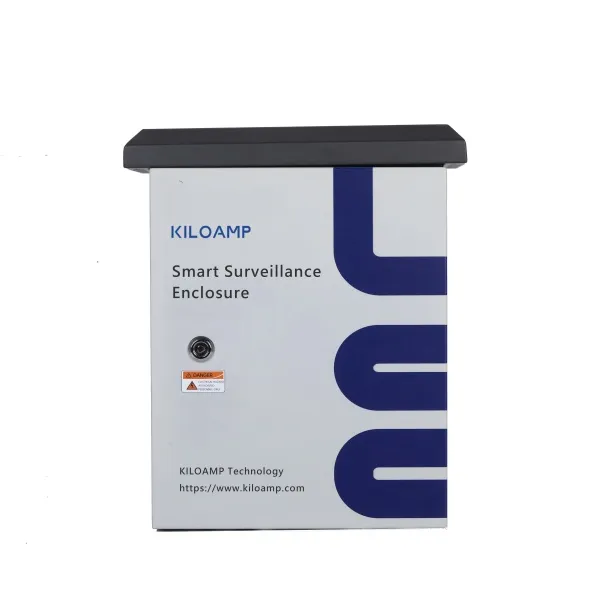

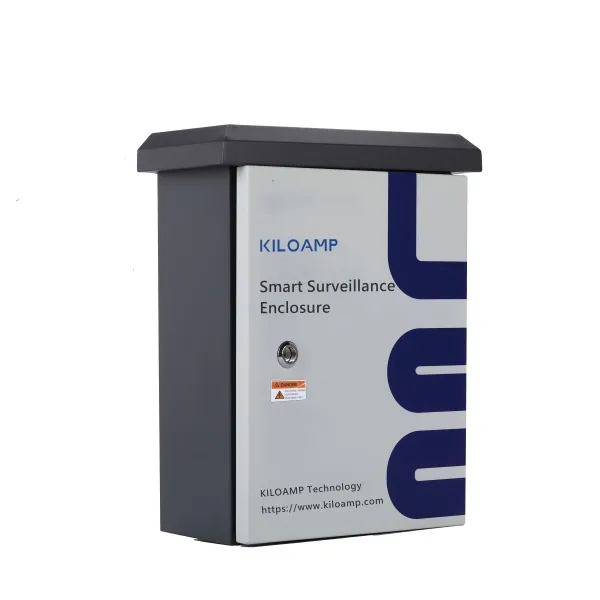

The KILOAMP smart enclosure is mainly used for power supply, communication and intelligent operation and maintenance of outdoor cameras. The smart enclosure integrates advanced Internet of Things communication technology and is equipped with an intelligent gateway. Through the monitoring platform, the front-end chassis can be centrally managed. The intelligent chassis can precisely monitor electrical parameters such as voltage, current and power consumption, and also monitor environmental parameters such as temperature, humidity and access control inside the box. The smart case supports an input voltage of 120-240VAC, with a maximum power of up to 2.5kW, and supports multiple voltage outputs such as 12VDC, 120/240VAC. To counter the threat of outdoor lightning surges, the smart case features a powerful lightning protection function, with a maximum current capacity of up to 40kA.

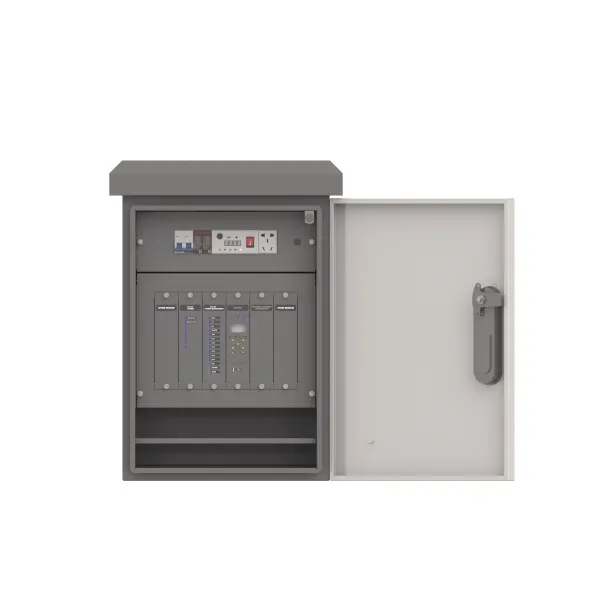

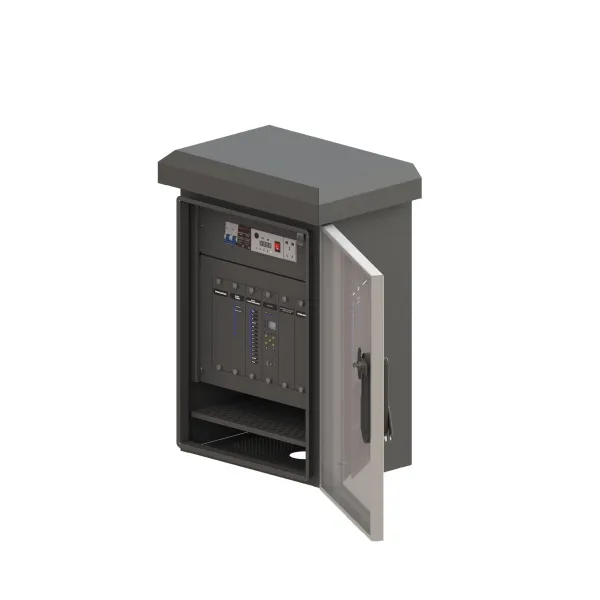

The KILOAMP smart enclosure is designed in a modular way and supports plug-and-play deployment, saving installation costs. It features a durable structure, made of cold-rolled steel plates, with a box protection grade of IP55, providing excellent dust and water protection to ensure reliable operation in harsh environments.
